Key size: bore 500 mm, outer diameter 680 mm, width 70 mm.
IKO Replacement Cross Roller Bearings · CRBC Series
CRBC50070 Cross Roller Bearing
CRBC50070 cross roller bearing with bore, outer diameter, width, series and quote information.
Ask for price, lead time and equivalent bearing options.
CRBC50070 IKO Cross Roller Bearing Photo
Real photo of an IKO replacement cross roller bearing for quick visual confirmation.
Product Introduction
CRBC50070 is a CRBC series cross roller bearing for compact rotary structures that need combined radial, axial and moment load capacity.
Suitable for robot joints, rotary tables, indexing mechanisms, inspection equipment and precision reducers.
Before ordering, confirm installation space, accuracy grade, clearance, preload and working load direction.

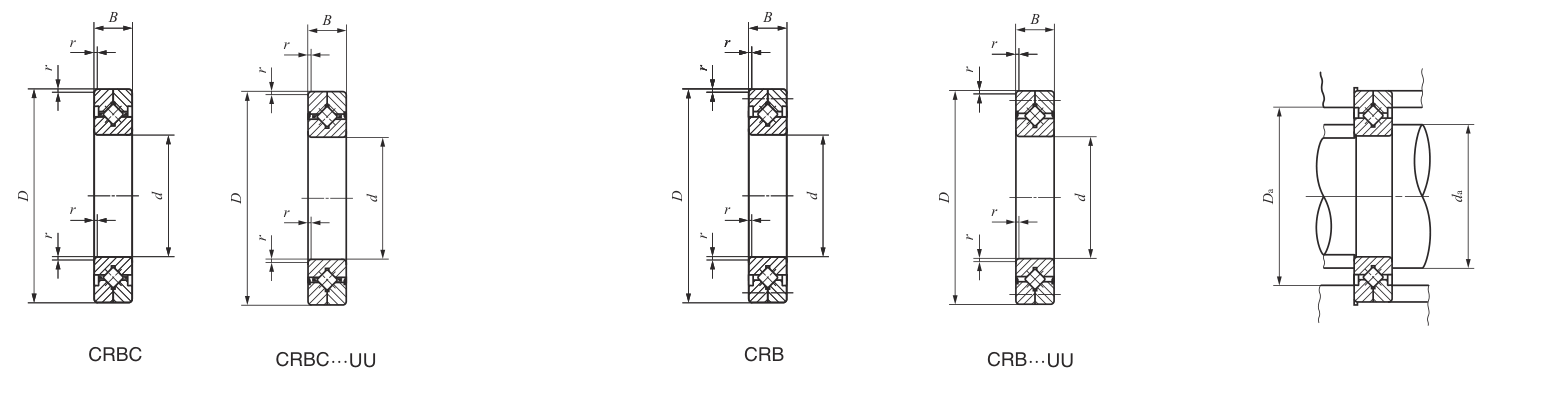

Dimension Drawing
Key dimensions are marked on the drawing for quick model checking.
d=500 mmD=680 mmB=70 mmds=530 mmDh=633 mm
Specifications
| Brand | IKO Replacement Cross Roller Bearings |
|---|---|
| Series | CRBC |
| Model | CRBC50070 |
| Bore diameter | 500 mm |
| Outer diameter | 680 mm |
| Width | 70 mm |
| Dynamic load rating C | 536 000 N |
| Static load rating C0 | 1 020 000 N |
| Mass | 86.1 kg |
| Feature | IKO large standard cross roller bearing with cage |
Application and Selection Notes
CRBC50070 is a CRBC series cross roller bearing. It is typically reviewed when compact structure, high rigidity and stable rotational accuracy are required.
Check the mounting space against bore 500 mm, outer diameter 680 mm and width 70 mm. Confirm shoulder dimensions before final housing design.
For load review, compare dynamic load rating 536 000 N and static load rating 1 020 000 N with the actual radial, axial and moment load conditions.
Series type：IKO standard cage type
Before Requesting a Quote
Target model or equivalent model
Quantity and expected delivery time
Accuracy, clearance and sealing requirements
Drawing, application or working load if available
Common Questions
Can CRBC50070 be replaced with another brand?
Yes. Please provide the original part number, drawing or key dimensions so the fit and accuracy can be checked.
What should be checked before ordering?
Confirm bore, outer diameter, width, load direction, rotation part and installation method.
