THK Replacement Cross Roller Bearings · RAU Series
RAU7008 Cross Roller Bearing
RAU7008 cross roller bearing with bore, outer diameter, width, series and quote information.
Ask for price, lead time and equivalent bearing options.

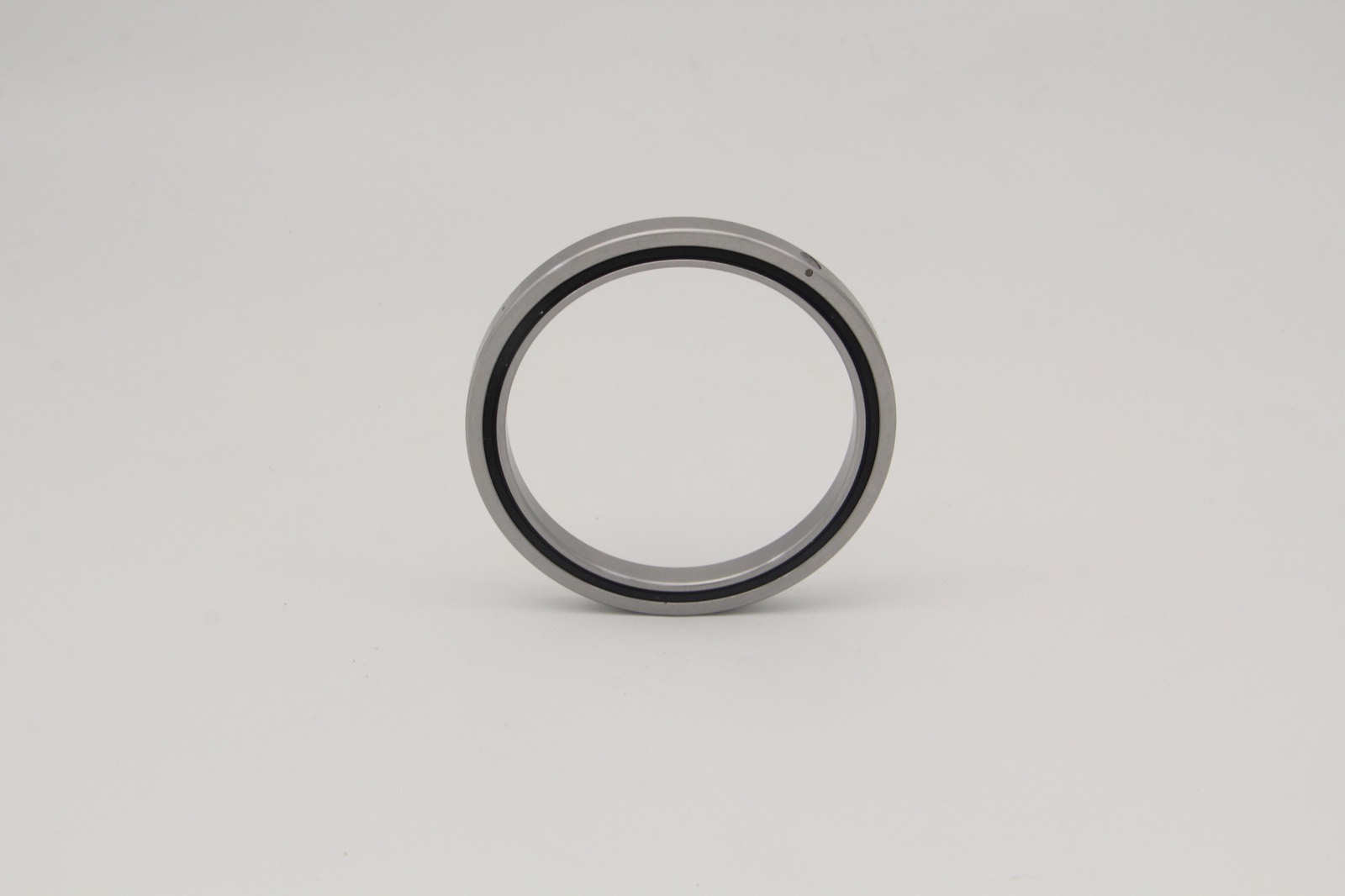

RAU7008 RAU Cross Roller Bearing Photo
Real photo of an RAU series cross roller bearing for quick visual confirmation.
Product Introduction
RAU7008 is a RAU series cross roller bearing for compact rotary structures that need combined radial, axial and moment load capacity.
Key size: bore 70 mm, outer diameter 86 mm, width 8 mm.
Suitable for robot joints, rotary tables, indexing mechanisms, inspection equipment and precision reducers.
Before ordering, confirm installation space, accuracy grade, clearance, preload and working load direction.
Dimension Drawing
Key dimensions are marked on the drawing for quick model checking.
d=70 mmD=86 mmB=8 mmdp=77 mmds=73.5 mmDh=80.5 mm
d=70 mmD=86 mmB=8 mmdp=77 mmds=73.5 mmDh=80.5 mm
Specifications
| Brand | THK Replacement Cross Roller Bearings |
|---|---|
| Series | RAU |
| Model | RAU7008 |
| Bore diameter | 70 mm |
| Outer diameter | 86 mm |
| Pitch circle diameter | 77 mm |
| Width | 8 mm |
| Dynamic load rating C | 5.98 kN |
| Static load rating C0 | 9.80 kN |
| Mass | 0.1 kg |
| Feature | Small-diameter thin type or RA-compatible type |
Application and Selection Notes
RAU7008 is a RAU series cross roller bearing. It is typically reviewed when compact structure, high rigidity and stable rotational accuracy are required.
Check the mounting space against bore 70 mm, outer diameter 86 mm and width 8 mm. Confirm shoulder dimensions before final housing design.
For load review, compare dynamic load rating 5.98 kN and static load rating 9.80 kN with the actual radial, axial and moment load conditions.
Series type：Small-diameter thin type
Before Requesting a Quote
Target model or equivalent model
Quantity and expected delivery time
Accuracy, clearance and sealing requirements
Drawing, application or working load if available
Common Questions
What type of bearing is RAU7008?
RAU7008 is a RAU series cross roller bearing for combined radial, axial and moment loads.
Can RAU7008 be replaced with another brand?
Yes. Provide the original part number, drawing or key dimensions so fit, bearing type and accuracy can be checked.
What are the load ratings of RAU7008?
The dynamic load rating is 5.98 kN and the static load rating is 9.80 kN. Final selection must consider the actual load direction and duty cycle.
What should be checked before ordering RAU7008?
Confirm bore, outer diameter, width, bearing type, accuracy, clearance, preload and installation method before ordering this Cross Roller Bearing.
